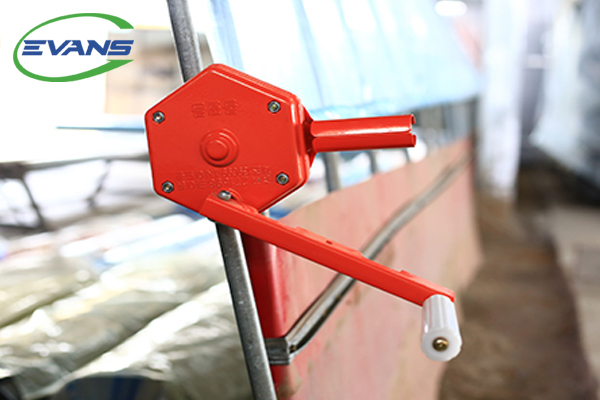

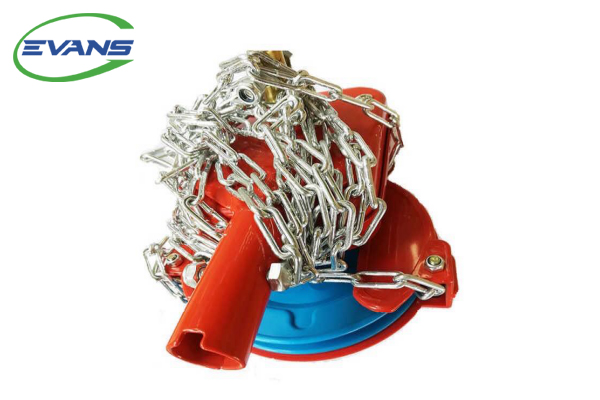

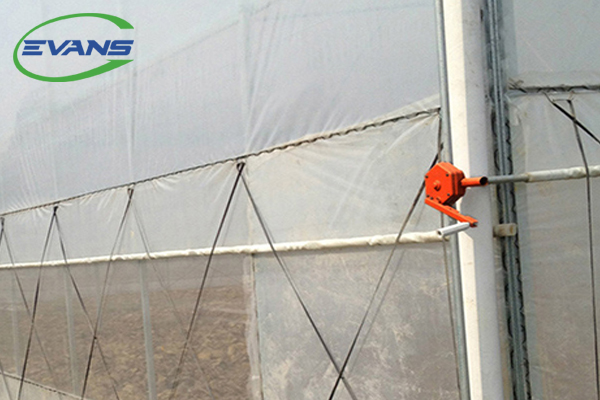

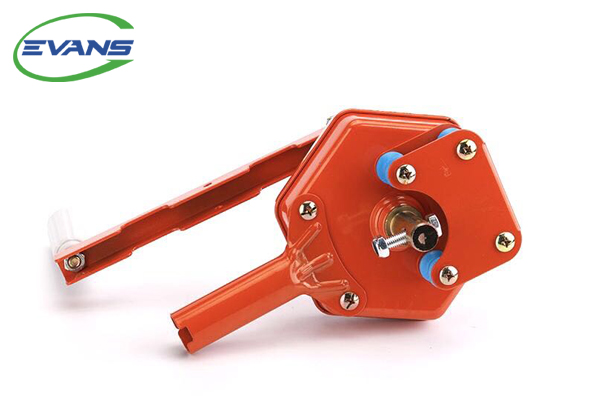

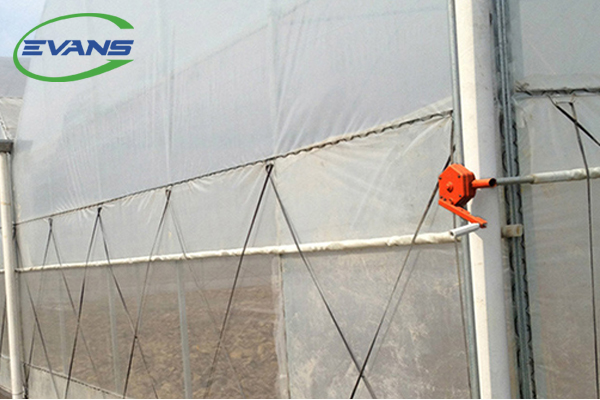

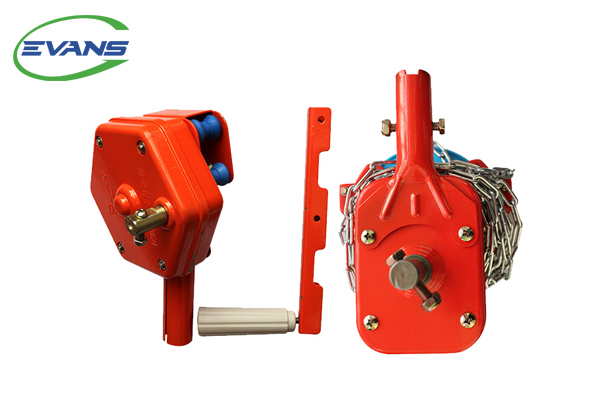

Film Roll Up Devices- Manual film foll up unit


Item | Torque | Speed Ratio | Rolling Length | Application |
Side film reeler | 30N.m | 4:1 | ≤120m | side ventilation |
Side film reeler | 100N.m | 7:1 | ≤150m | side ventilation |
Roof film reeler | 40N.m | 4:1 | ≤100m | roof ventilation |

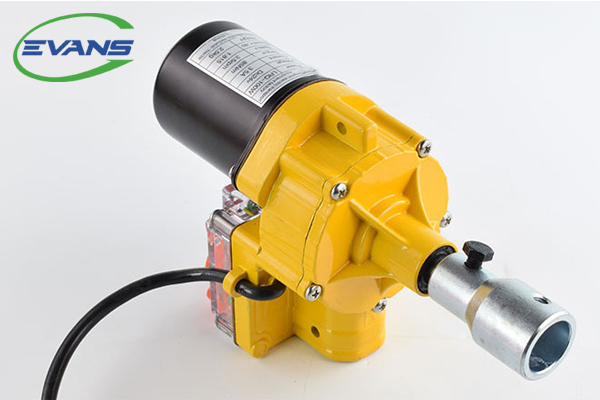

Electric Film Reeler
Electric | Power | Torque | Rolling Length |
DC24V | 60W | 60N.m | ≤80m |
DC24V | 100W | 100N.m | ≤100m |
DC24V | 120W | 120N.m | ≤150m |
AC220V | 60W | 60N.m | ≤80m |
AC220V | 100W | 100N.m | ≤100m |
AC220V | 120W | 120N.m | ≤110m |
Evans Greenhouse provides Manual film roll up unit (Film reeler) and Greenhouse motor, which is also called film reeler.
These film reelers are with high quanlity and made in China, with competitive prices and durable quality. Evans Greenhouse compoents are always offering you good quality film reeler, and providing time saving solutions
Greenhouse Electric Winch Roll Up Unit for Ventilation and the traditional manual roll-up unit are in revolving & releasing films and greenhouse environment, the electric Roll Up Unit it is the new generation of greenhouse ventilation and temperature regulation facilities. Portability, output torque, output lock, wide range and precise adjustment, waterproof, dew-proof and power-saving are the key characteristics for Electric Roll-Up Unit, which is the best choice for modern daylight greenhouse applied in different climates.
You may aslo click below to find more Greenhouse products.

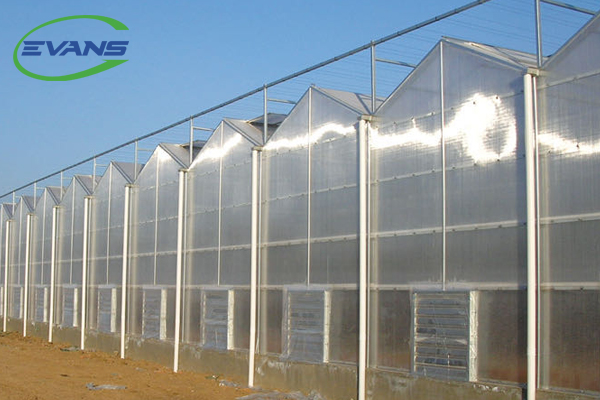

Polycarbonate Greenhouse
